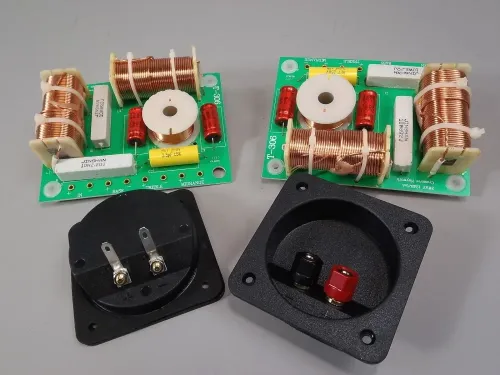

3 way Crossover Pair High Power 1000W RMS 8 Ohm 12 dB & Square Frame Terminal Cup

Mavin's 12 dB 3 Way Crossover, 8 Ohm Nominal Impedance, PC Board Design with Plastic Stand Offs, note that some soldering required to attach the wires to the circuit board.

Features


• PC Board Design
• 1000 Watts RMS Power Rating
• 8 ohm impedance
• Crossover points at 1000 Hz. and at 3400 Hz.
• 12 dB Octave Slope
• Size L x W x H 125 x 95 x 35 mm
  or
  5" x 3 3/4" x 1 1/2"
• Suitable for a general 3 way design, look at your Speaker Frequency Response, will work with speaker sizes 6.5" to 18" or larger.
• Note that you can use this crossover in a 4 ohm system too, the crossover points will change to 2000 Hz. and 7000 Hz. due to the change in impedance.

Terminal Cup Features:

Outside Diameter: 3 1/8" square  (73.375mm)
Inside Cabinet Cutout: 2 21/32" (67.4mm)
Depth: 3/4"  (19mm)
Mounting Holes: 2 21/32" dia hole (67.4mm)
Easily identified colored posts that are gold plated



Remember, Sound Without Quality is Just Noise...
