Mavin High Performance 3 Way Crossover Rated for 1000 Watts RMS, with crossover points at 1000 Hz. and 3500 Hz. at 8 ohms nominal. Price listed is for a Pair of crossovers with Large Round Terminal Cups

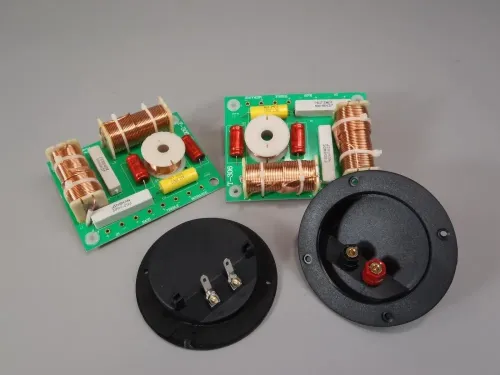

Mavin's 12 dB 3 Way Crossover, 8 Ohm Nominal Impedance, PC Board Design with Plastic Stand Offs, note that some soldering required to attach the wires to the circuit board.
Features
PC Board Design
1000 Watts RMS Power Rating
8 ohm impedance
Crossover points at 1000 Hz. and at 3400 Hz.
12 dB Octave Slope
Size L x W x H 125 x 95 x 35 mm or 5" x 3 3/4" x 1 1/2"
Suitable for a general 3 way design, look at your Speaker Frequency Response, will work with speaker sizes 6.5" to 18" or larger.
Note that you can use this crossover in a 4 ohm system too, the crossover points will change to 2000 Hz. and 7000 Hz. due to the change in impedance.
Mavin High Performance 3 Way Crossover Rated for 1000 Watts RMS, with crossover points at 1000 Hz. and 3500 Hz. at 8 ohms nominal. Price listed is for a Pair of crossovers with Large Round Terminal Cups
Mavin's 12 dB 3 Way Crossover, 8 Ohm Nominal Impedance, PC Board Design with Plastic Stand Offs, note that some soldering required to attach the wires to the circuit board.
Features
PC Board Design
1000 Watts RMS Power Rating
8 ohm impedance
Crossover points at 1000 Hz. and at 3400 Hz.
12 dB Octave Slope
Size L x W x H 125 x 95 x 35 mm or 5" x 3 3/4" x 1 1/2"
Suitable for a general 3 way design, look at your Speaker Frequency Response, will work with speaker sizes 6.5" to 18" or larger.
Note that you can use this crossover in a 4 ohm system too, the crossover points will change to 2000 Hz. and 7000 Hz. due to the change in impedance.
