TL3001A-4 Professional Class Speaker 12 Inch 325 Watt RMS Woofer 4 Ohm With and SPL of 91 dB

TL3001A-4 Professional Speaker 12 Inch 325 Watt RMS Woofer 4 Ohm With and SPL of 91 dB

12 inch TL3001A-4 Woofer

Professional Speaker
12 Inch 325 Watt RMS Woofer
4 Ohm With and SPL of 91 dB



Our Mavin high performance 12" professional driver
Rated for 325 watts RMS, impedance is 4 ohms, cloth surround for long life and durability.
Heavy 9 pound magnet structure.

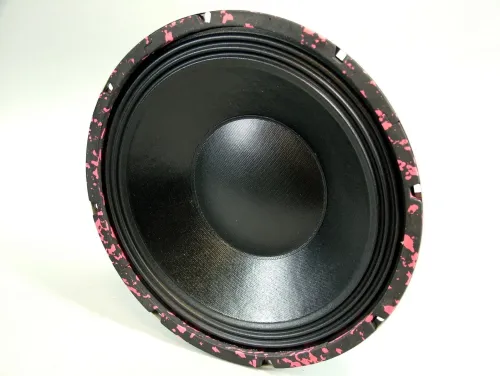

Red speckle seal around the front of the frame, makes it stand out and be noticed.
As does the sound, it is strong and tight, great for a replacement, or for that special project.

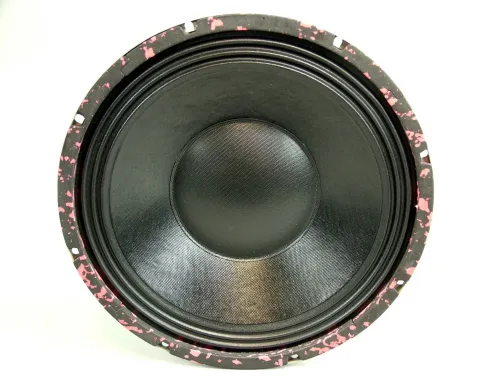

Has a stiff paper cone for low distortion and high fidelity reproduction qualities.

Mavin's TL3001A series is a top of the line professional speaker. Built with a mix of high durability, and great sound reproduction. It will last for many years, and could out last the cabinet you put it in.
This is a very heavy and efficient speaker, with a 2.5" voice coil that can handle up to 325 watts RMS and 500 watts peak. Pumping out good sounds is just what this speaker was designed for, with a SPL rating of 91 dB and a range from 23 Hz. to 4000 Hz. You will find that the EM-TL3001A-4 is a great speaker as a replacement or for any new project you have in the works.
Superior performance for PA systems, guitar amps, professional sound systems, or really durable old school home speaker systems.

Features:



• Stiff pressed paper cone with cloth surround
• 325 watts RMS power rating
• 4 ohm impedance
• A practical frequency range from 23 Hz. to 4000 Hz.
• 2.5 inch ( 62.5 mm ) voice coil
• Size 12 3/16" Dia. for a 11 3/16" mounting hole, and a 5 3/8" mounting depth. 8 mounting screws

Note that you can also get this speaker in an 8 Ohm Impedance



Thiele Small Specifications:

• Revc = 3.600 ohms
• Fo = 25 Hz.
• Sd = 35.633 mM
• Md = 50.000 g
• Bl = 8.836T
• Qms = 3.920
• Qes = 0.659
• Qts = 0.564
• No = 0.525%
• SPL = 90 dB
• Vas = 47.533 mM
• Cms = 263.634u M/N
• Krm = 2.353 m Ohm
• Erm = 0.895
• Mms = 53.868 g
• Mmd = 50.000 g
• Kxm =18.739 mH
• Exm = 0.746
