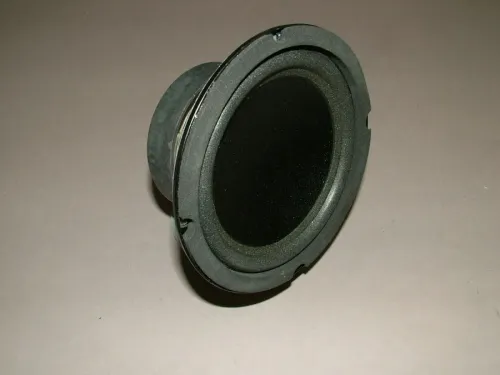

New Pair SS130 Small Woofer / Mid Range 5" inch 4 ohms 50 watts
Nice little 5" woofer / Mid Range, great for small speaker projects, car or home. 4 Ohms and good for 50 watts RMS, it's a great looking and sounding little driver. Would be a perfect Mid for a larger 3 way design, or even a woofer replacement for a smaller 2 way system or cube. I can see it used in a nifty rear or side speaker DIY Home Theater design

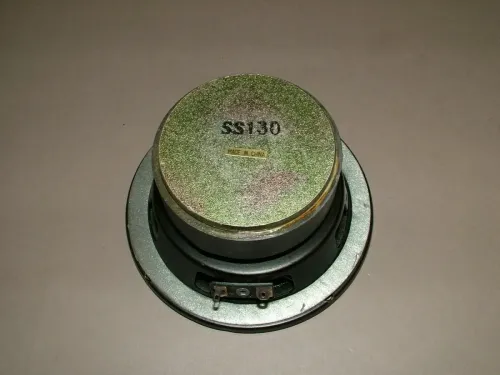

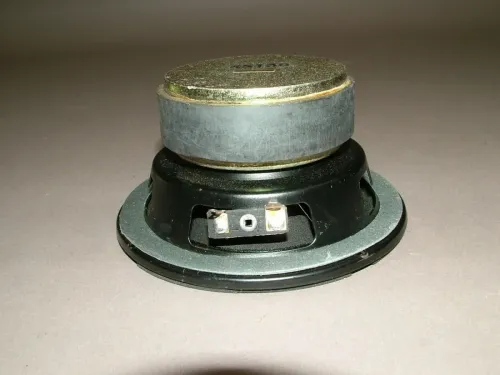

16 oz. magnet 1” Voice Coil 50W RMS 55-6.5 kHz 4 ohm type SPL 92 dB Treated paper cone Foam Surround Diameter 5" Mounting Hole Diameter / Cutout 4 3/8" 4 Screw Holes, spaced 4.697" (approximately 4 3/4") (120 mm) center to center on the diagonal
Thiele-Small Parameters
(Fs)63.9 Hz
(Re) 2 ohms
(Le)0.42 mH
(Qms) 4.22
(Qes) 0.59
(Qts) 0.52
(Vas) 0.177 ft.³
(Xmax)2 mm
Sold as a Pair, ( 2 pcs.) Shipping weight 5 pounds per pair.
