High Quality Driver 12" 325 Watts RMS 8 Ohm SPL 91 dB

12 inch TL3001A-8 Woofer 8 Ohm 91 dB

Professional Quality Speaker
12 Inch 325 Watt RMS Woofer
8 Ohm With and SPL of 91 dB

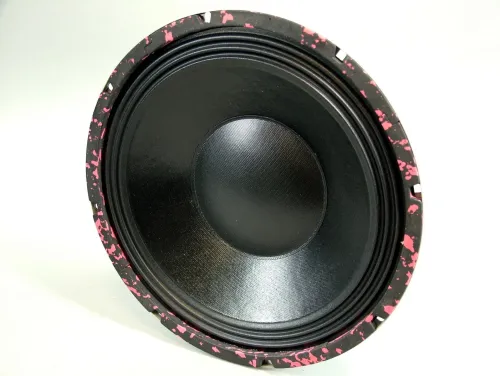

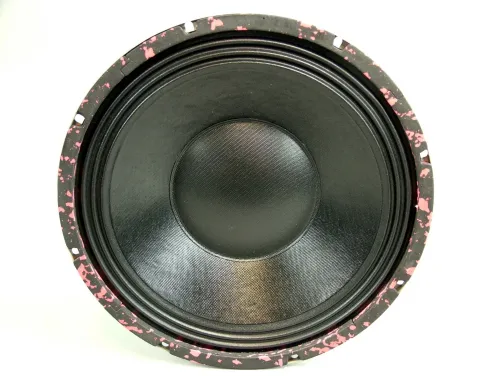

Our Mavin high performance 12" professional driver
Rated for 325 watts RMS, impedance is 8 ohms, cloth surround for long life and durability.
Heavy 9 pound magnet structure.
Red speckle seal around the front of the frame, makes it stand out and be noticed.
As does the sound, it is stroung and tight, great for a replacement, or for that special project.
Has a stiff paper cone for low distortion and high fidelity reproduction qualities.

Mavin's TL3001A series, is a top of the line professional speaker. Built with a mix of high durability, and great sound reproduction. It will last for many years, and could out last the cabinet you put it in.
This is a very heavy and efficient speaker, with a 2.5" voice coil it can handle up to 325 watts RMS and 600 watts peak. Pumping out good sounds is just what this speaker was designed for, with a SPL rating of 91 dB, and a range from 23 Hz. to 4000 Hz. You will find that the EM-TL3001A-8 is a great speaker as a replacement, or for any new project you have in the works.
Superior performance for PA systems, guitar amps, professional sound systems, or really durable old school home speaker systems.

Features:



• Stiff pressed paper cone with cloth surround
• 325 watts RMS power rating
• 8 ohm impedance
• A practical frequency range from 23 Hz. to 4000 Hz.
• 2.5 inch ( 62.5 mm ) voice coil
• Size 12 3/16" Dia. for a 11 3/16" mounting hole, and a 5 3/8" mounting depth. 8 mounting screws

Note that you can also get this speaker in an 4 Ohm Impedance



Thiele Small Specifications:


• Revc = 7.200 ohms
• Fo = 23 Hz.
• Sd = 35.633 mM
• Md = 50.000 g
• Bl = 8.836T
• Qms = 3.920
• Qes = 0.659
• Qts = 0.564
• No = 0.525%
• SPL = 91 dB
• Vas = 47.533 mM
• Cms = 263.634u M/N
• Krm = 2.353 m Ohm
• Erm = 0.895
• Mms = 53.868 g
• Mmd = 50.000 g
• Kxm =18.739 mH
• Exm = 0.746
