Dual 8" Two Way Speaker Kit (Builds a Pair of Speakers)

Dual 8" Two Way Speaker Kit
(Components to Build a Stereo Pair of Speakers)

NOW!! With a upgraded Mavin TL-280 CrossOver


Complete with:

• (4) Eight inch JSD Polly Cone Woofers,
• (2) JSD one inch dome tweeters,

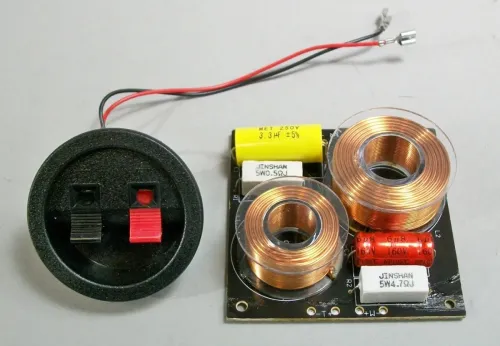

• (2) TL-280 crossovers.
• Strong tight bass with a clean, clear, crisp sound. DIY and save!

Looking to build a nice tight sounding speaker?
Many in the audio world prefer a dual 8" woofer over a single 12" woofer. This is because a dual 8" woofer system, will produce the same bass as the single 12" driver. It  will do it better with a much tighter sounding bass. Due to the smaller size and mass, a  8" woofer recovers faster than the 12" driver; after the big bass note has hit, the 12" driver is still returning to the resting position, while the 8" driver is already there waiting, and ready to produce the next sound. This gives you a much cleaner sound because there is minimal sound overlap. Your Bass will not sound muddy, it will be crisper and tighter sounding.

This kit is great for home use, and is perfect for a dual woofer 150 watt speaker project. Each component is designed to the highest home theater standards.
The kit can also be adapted for mobile use. If you can't fit a big 12" driver how about a couple of eights down low?
Great for a woofer array to create a sound that surounds your ears.
With a sound pressure level of 90 dB, this is a very healthy setup, with higher volume levels at lower wattage.
Clean Bass, not muddy or muted!
Buy one (1) and you get the components to produce one pair (2) of speakers.

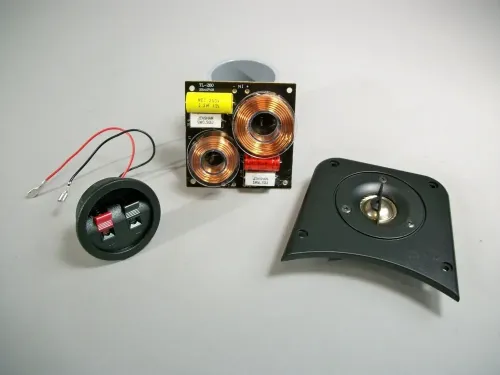

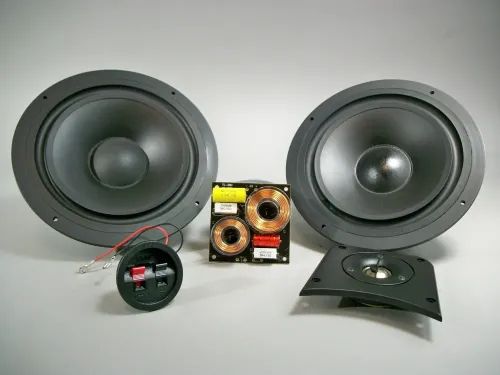

This set of components.

• 4 Eight inch woofers
• 2 tweeters
• 2 crossovers
• 2 terminal cups

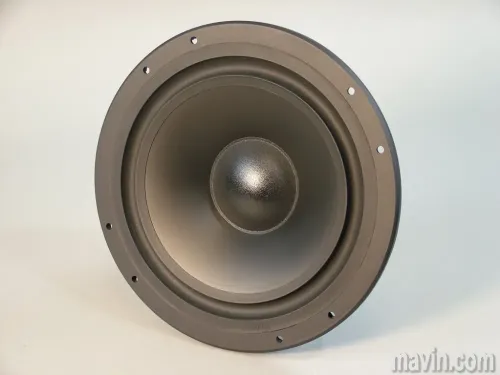

Woofer Specifications

• 1 1/2" or 37.5mm voice coil
• 4 ohms ( Wired in series to give you the required 8 ohm load )
• SPL 91dB at 1 watt at 1 meter
• Response 38Hz to 6KHz.
• Magnet type standard Ferrite
• 100 watts free air power rating

Mounting

• 8.5" round mounting flange
• 7" mounting hole
• 3 3/4" mounting depth
• 3/16" screw holes, 7 7/8" center to center on the diagonal

Thiel Small

• Re = 3.0129 ohms (VC@DC)
• Fs = 45.7853 Hz.
• Zmax = 22.0486 ohms
• Qes = 0.7962
• Qms = 5.0302
• Qts = 0.6874
• Le = 0.5420 mH (at 1 kHz.)
• Vas = 62 L

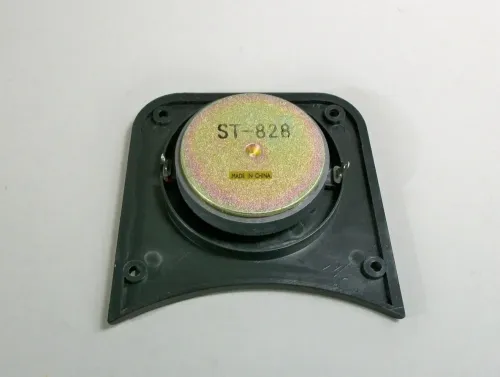

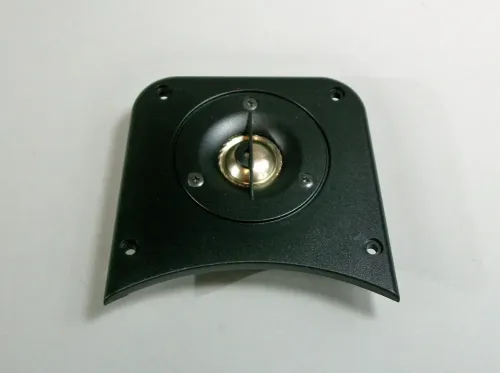

Tweeter Specifications

• 1" Dome Tweeter
• 8 Ohms
• 60 watts
• Response 2.25 kHz to 20 kHz
• SPL 90 db at 1 watt at one meter

Misc. Information
Shipping weight is 20 pounds
Components are new from bulk factory cases
For this application wire the woofer pair in series to get 8 ohms.


Just a little info about the maker of the components JSD Sound: they have been around for over 20 years making fairly unknown but nevertheless high quality products.
Both custom one off creations and audiophile quality systems from their standard catalog.
Fit, finish and performance all above the standard mass produced item.
